Metallic Bellows Design Software App
EJMA 10Th Edition
Circular Bellows calculations
Metric Units
Imperial Units
-
Apps Supports
Mac
Ipad
Iphone
Available Apple Store

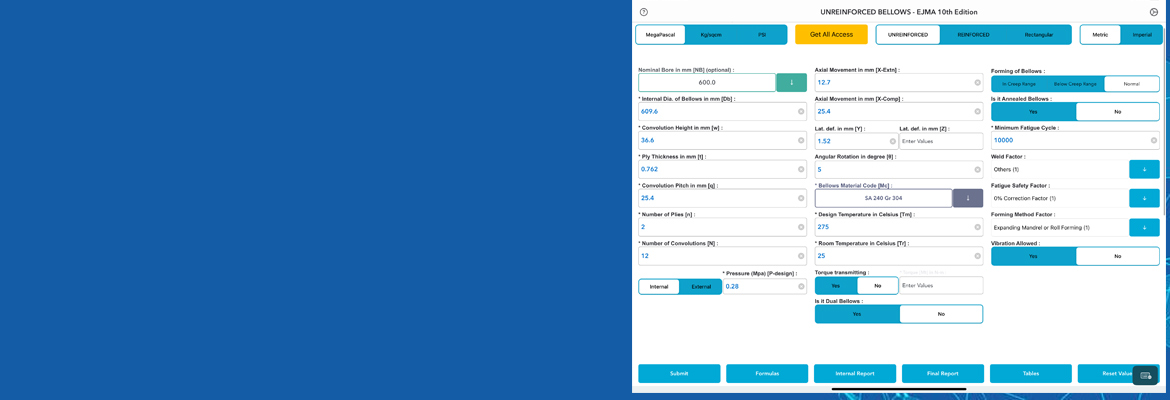

Key- Bellows design Software
-
Evaluate Bellows Design
Fatigue Cycle Life
Stress
Movements & Trust Force
Vibrations & Spring Rate
-
Reports

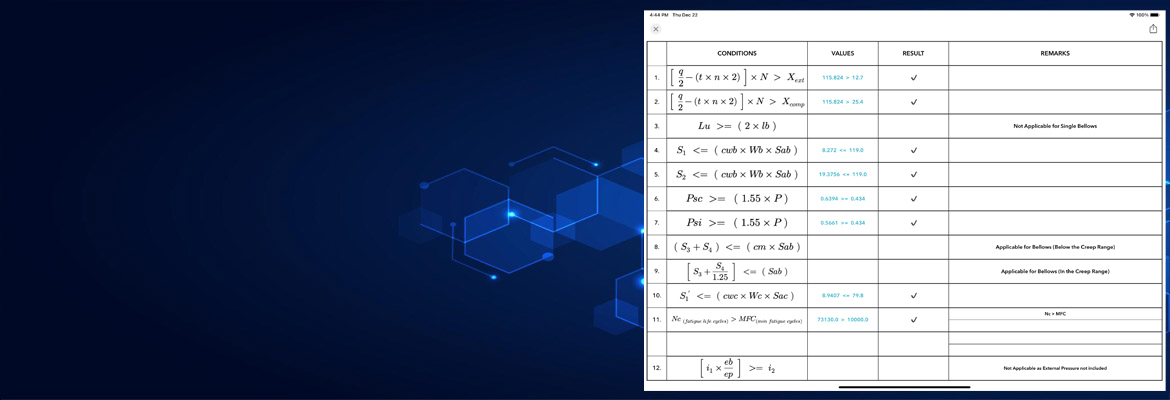

Final Design

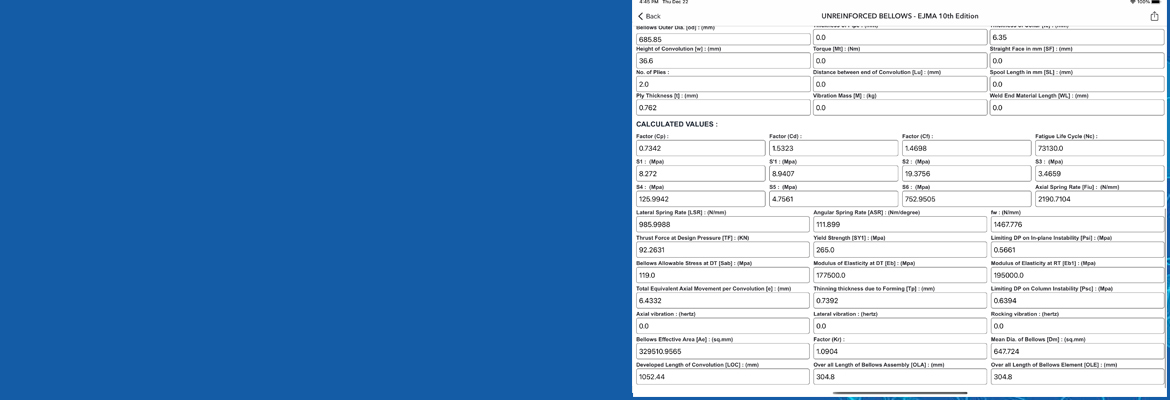

Detailed Calculations
Internal
Material Properties Table
-

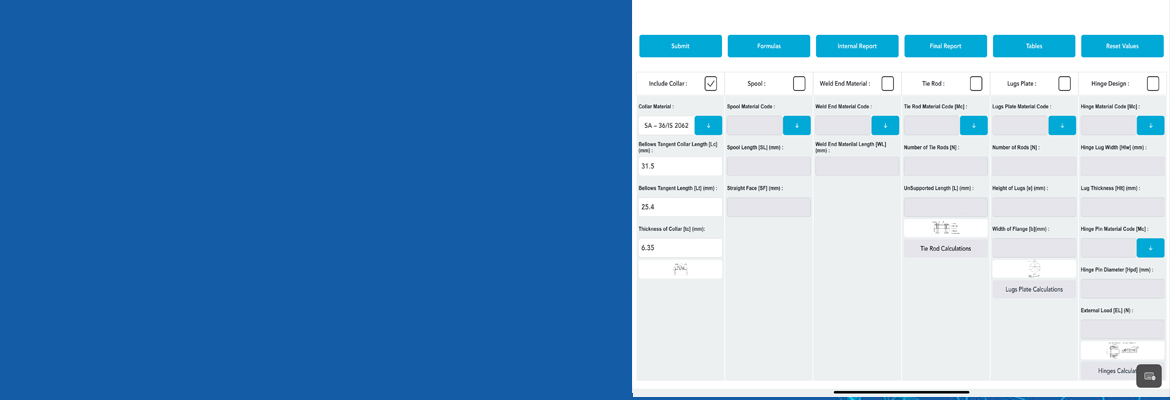

Accessories
Tie Rod
Lugs Plate
Hinge design
Apps Support - MAC| IPAD | IPHONE
Software App to provide a complete design, checking and generate Design reports for the manufacturing of Metallic Expansion Joints. The software calculation is based on EJMA 10 th Edition design standards and offers excellent flexibility in terms of selecting the correct material and calculating design data for metallic bellows based on applications and design temperature & design pressure. Now multiple designs of bellows data can be saved in a pdf file with one folder and can be reloaded as and when required.
About Bellows design
Manufacturers generally provide design specification Nominal bore and thickness of ply and no of convolution , design pressure and temperature movements and selection of material , based on inputs data will software calculate the stress values will check with given minimum life cycle .
Extension and compression movements allowable stress , design pressure ,convolution length , creep range and external pressure and limiting internal pressure (psi) the input data such as life cycle , stress vibration movements and spring rate for a given minimum life cycle and input datas performance.
However, these values tend to vary over a period of time and often it is necessary to evaluate and compare design specification data with actual performance.
This app serves as a tool for different materials and application engineers in monitoring design calculations and checking the conditions in a metallic bellows.
Material Properties
Users can quickly select different material for bellows based on application from a list of most common materials used in industrial applications. The key property data such as movemoments, vibrations , spring rate allowable stress and life cycle is evaluated based on given temperature and pressure for the material For material that is not in the list, users can create a custom material with known property data.
Alert Messages and Design
Movements
Vibrations
Spring Rate
Torque Transmitting
Stress Conditions
Cycle Life
Creep Range.
Bellows design Data
One can choose Metallic Bellows depending upon type of application as well as selection of bellows materials bellows life cycle can be computed using the input dimensional data.
software will help design engineers save time and effort
while changing the thickness of the bellows. As the thickness of the bellows increases, the spring rate, thrust force, and stress increase, and fatigue life decreases.
Features
User friendly unit conversion Metric and imperial units .
Design calculation can be made as per EJMA 10th Edition standard
The input & output values are perfectly cross checked with the EJMA - Bench mark calculations
Software which provides Reports for all formulas and Detailed calculations and Design Conditions Checking .
